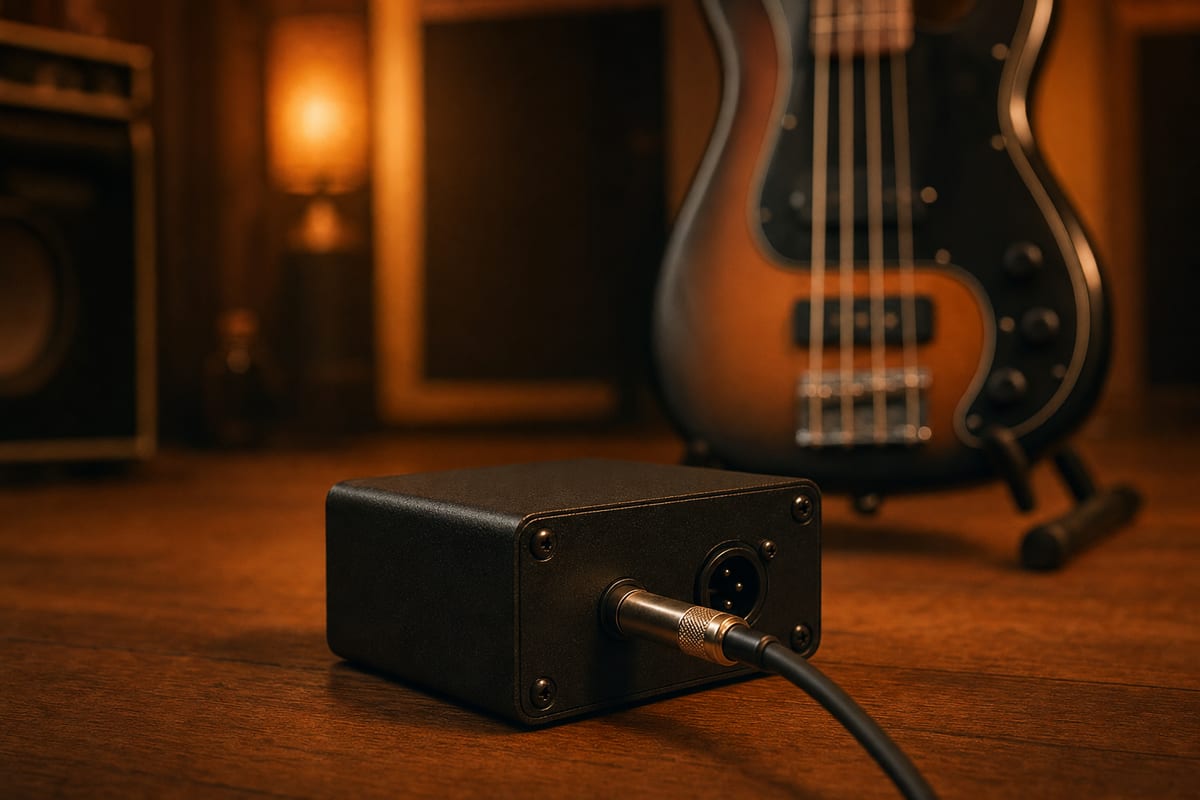

Walk into any recording studio or look at any stage setup and you will find a small metal box, often bolted to the floor or tucked behind an amp, that almost nobody talks about. It has no knobs worth showing off and no lights worth admiring. It is a DI box, and despite being one of the least glamorous pieces of gear in music, it solves a problem that would otherwise quietly wreck your sound.
Here is what a DI box is, what it does, and when you actually need one.
What DI stands for
DI is short for direct injection, and the device is also called a direct box. Its job is to take the signal coming out of an instrument, such as a bass, a keyboard, or an acoustic guitar with a pickup, and convert it into a form that professional audio gear can handle cleanly.
Specifically, it converts a high-impedance, unbalanced signal into a low-impedance, balanced one. You do not need to memorize that phrase to understand the payoff: the converted signal can travel a long way down a cable without losing its tone or picking up the hum and buzz that a plain instrument cable would collect along the way.
The problem it solves
Instrument outputs are not designed to travel far. Run a bass through a long standard cable straight into a mixing desk across a stage, and you invite noise, hum, and a dull, weakened tone. The signal simply is not built for that trip.
A DI box fixes this by reshaping the signal at the source. It becomes robust enough to survive a long, balanced cable run into the mixer or audio interface, arriving clean. That is the entire reason the box exists, and it is why you see one under nearly every bass rig and acoustic act on a professional stage.
Active versus passive
There are two main types, and the difference is worth knowing because it affects which one you should reach for.
A passive DI box uses a transformer and needs no power at all. It is simple, rugged, and pairs well with strong signals, such as an active bass that already outputs a healthy level. A passive DI is the plug-and-forget option.
An active DI box contains powered circuitry, drawing from a battery or from phantom power supplied by the mixer. That power lets it handle weaker signals gracefully, which makes it a good match for instruments with a quieter output, like an acoustic guitar with a passive pickup. Neither type is better in the abstract. The instrument and the situation decide.
Do you need one at home?
If you record at home, you may already have this covered without realizing it. Many audio interfaces include an instrument input, usually marked Hi-Z or Inst, that performs the same core conversion for a short run straight into the interface. For a lot of home recording, that is enough.
A dedicated DI box earns its place when you want a particular tone, a cleaner capture, or you are running longer cables. And the moment you step onto a stage, it stops being optional. Feeding a bass or an acoustic-electric guitar to a front-of-house desk without one is asking for noise.
The takeaway
A DI box is proof that the most important gear is not always the flashy gear. It is a small, inexpensive box that does one unglamorous job extremely well: it hands your instrument's signal to the rest of the rig clean, quiet, and ready to travel. Learn what it does, know whether you need active or passive, and you will never again wonder why the bass sounds so much clearer once it is plugged into that little metal box on the floor.
Subscribe to the Sunday Stem
A short, honest dispatch on American music, three mornings a week, with the Sunday Stem on craft, catalog, and the writers keeping the long tradition alive.
More from the Song Production desk →Frequently asked
What does a DI box actually do?
It converts a high-impedance, unbalanced instrument signal into a low-impedance, balanced signal. In plain terms, that means it takes the output of an instrument like a bass or keyboard and reshapes it so it can travel down a long cable to a mixer or interface without losing tone or picking up hum and noise.
What is the difference between an active and a passive DI box?
A passive DI box uses a transformer and needs no power. It is simple, reliable, and works well with strong signals like an active bass. An active DI box contains powered circuitry, usually from a battery or phantom power, and provides a boost that suits weaker signals such as a passive pickup on an acoustic guitar. Neither is universally better; the right choice depends on the instrument.
Do I need a DI box for recording at home?
Not always. Many audio interfaces have a built-in instrument input, often labeled Hi-Z or Inst, that does the same core job for a short cable run into the interface. A dedicated DI box becomes useful when you want a specific tone, a cleaner result, or you are running longer cables, and it is close to essential in a live setting.
When would I use a DI box live?
On stage, a DI box lets you send your instrument directly to the front-of-house mixing desk over a long, balanced cable without the noise you would get from a standard instrument cable. Bass players and acoustic-electric guitarists use them constantly, and keyboards are often run through DIs as well.
